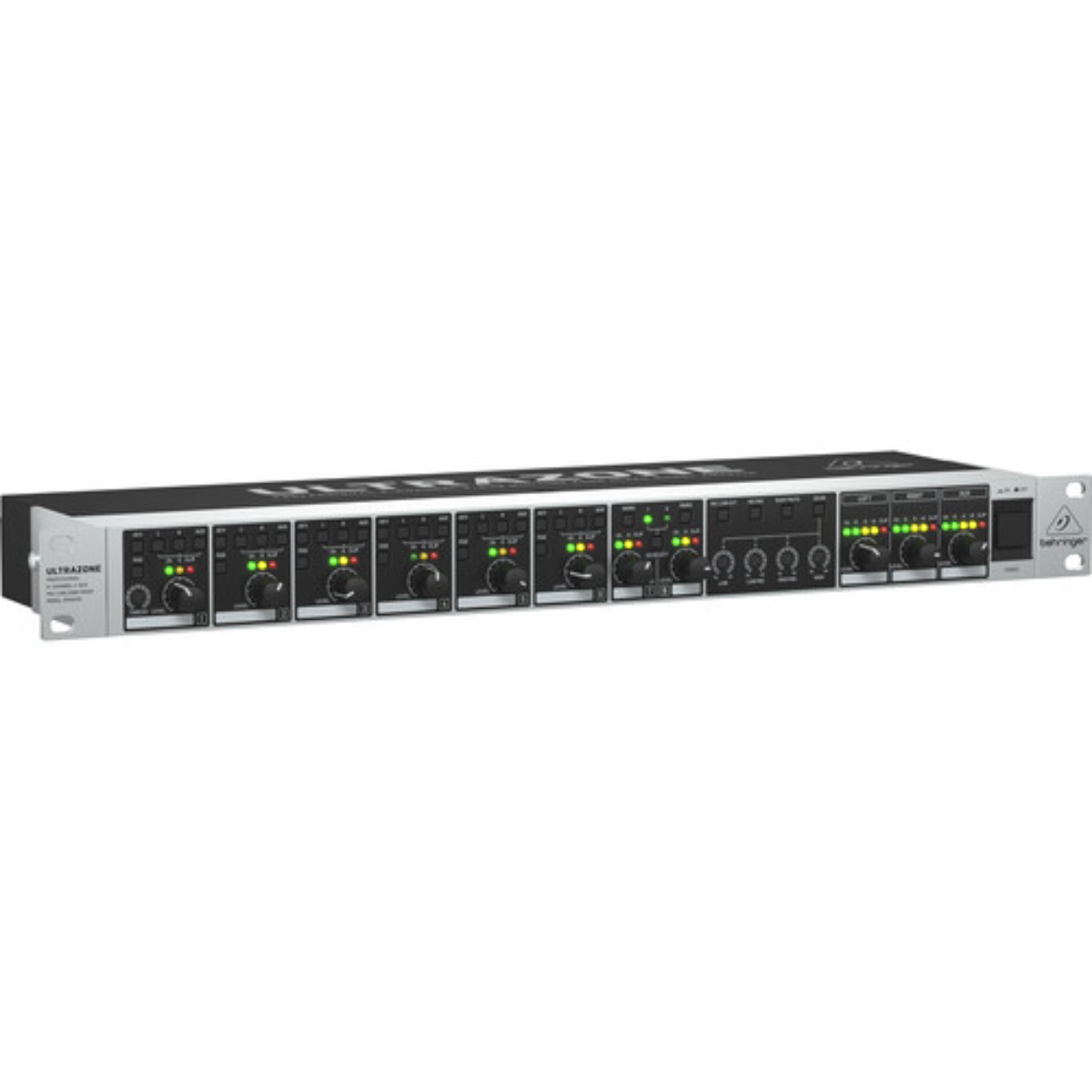

Behringer ULTRAZONE ZMX8210 V2 | 8 Channel - 3 Zone Mixer | Commercial Audio Distribution System

Behringer ULTRAZONE ZMX8210 V2  (Behringer ZMX8210 V2)

Zone Mixer

Behringer ULTRAZONE ZMX8210 V2 is a versatile rackmount zone mixer built for commercial audio distribution across multiple rooms or areas. It allows you to route multiple audio sources—such as microphones and music players—to up to three independent zones, making it ideal for businesses and installed sound systems.

Behringer ULTRAZONE ZMX8210 V2 Competitive Differences

• Flexible 8-channel input system with 6 mic/line inputs and stereo sources
• 3-zone output routing with ducking, global EQ, and remote control capability

Behringer ULTRAZONE ZMX8210 V2 Description

The Behringer ULTRAZONE ZMX8210 V2 is engineered for professional fixed installations where reliable and flexible audio distribution is essential. With 6 ultra-low noise mic/line inputs featuring gain control, pads, and phantom power, plus two additional stereo inputs, it accommodates a wide variety of sound sources for dynamic environments.

This mixer allows any of its 8 inputs to be routed to up to three independent zones, giving users full control over audio in different areas. Whether you need background music in one space and announcements in another, the ZMX8210 V2 makes it simple to manage multiple audio streams simultaneously.

A built-in ducking function ensures that announcements are always clearly heard by automatically lowering background music levels when a microphone signal is detected. The integrated 4-band master EQ and low-cut filter help optimize sound quality and intelligibility across all zones, reducing feedback and enhancing clarity.

Designed for scalability and ease of use, the unit supports linking multiple mixers for expanded input capacity. Remote control ports allow external volume adjustments, making it perfect for installations where local control is needed in different rooms. Its intuitive front panel and robust rackmount design make it accessible for both experienced technicians and everyday users.

ZMX8210 V2 Features

• 8-channel zone mixer with 6 mic/line inputs and 2 stereo inputs
• 3 assignable outputs (Left, Right, Aux) for multi-zone audio distribution
• +48V phantom power for condenser microphones
• Ducking function for automatic announcement priority
• Global 4-band EQ and microphone low-cut filter
• Gain control, -20 dB pad, and level/clip indicators per channel
• 5-segment LED meters for output monitoring
• Bus link capability for expanding with additional units
• Remote volume control support for installed systems

ZMX8210 V2 Specifications

• Inputs: 6 Mic/Line (Euroblock), 2 Stereo (RCA)
• Outputs: 3 (Left, Right, Aux – Euroblock)
• Frequency Response: 20 Hz – 22 kHz (±0.5 dB)
• Signal-to-Noise Ratio: 87 dB (A-weighted)
• THD+N: <0.05%
• Maximum Output Level: +21 dBu
• EQ: 4-band master (Low, Low Mid, High Mid, High)
• Power Supply: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 15 W
• Dimensions: 19 x 6 x 1.7 in (483 x 153 x 44 mm)
• Weight: 3.7 lb (1.7 kg)

What's In The Box

• ULTRAZONE ZMX8210 V2 mixer
• IEC power cable
• User documentation
